Trenchless Pipe Repair: Smart Fixes for Sewer Line Problems

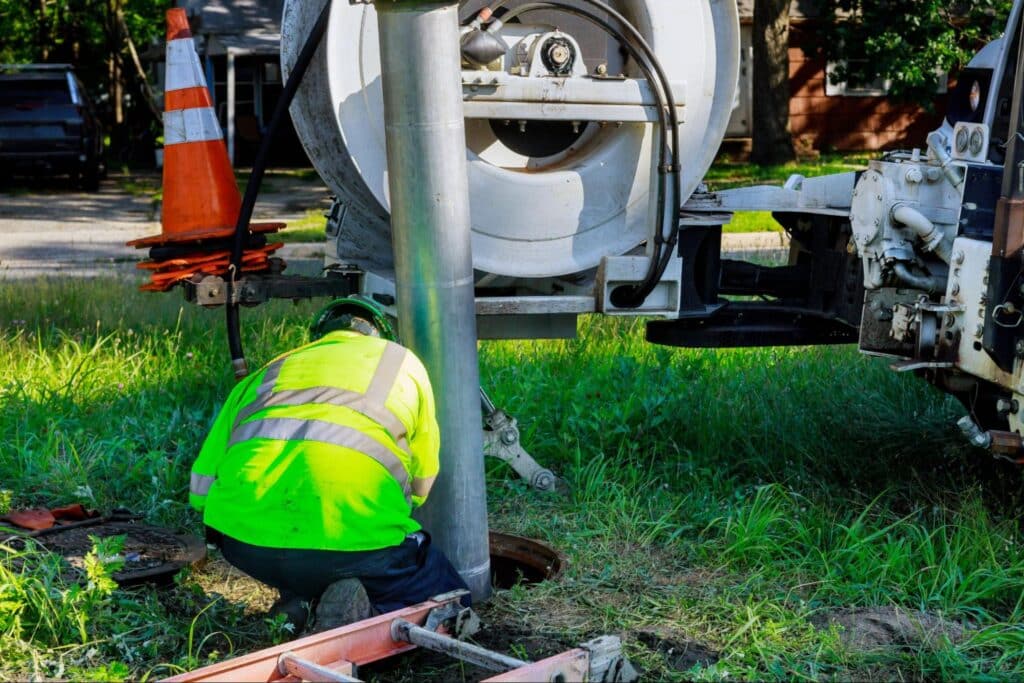

Plumber using trenchless technology for efficient pipe repair at a job site.

Dealing with recurring sewer line problems can be both disruptive and costly. When sewer line damage goes untreated, it can turn into serious health hazards and property risks. Fortunately, modern plumbing technology offers efficient, minimally invasive solutions. Trenchless pipe repair has emerged as a breakthrough alternative to traditional methods, allowing repairs or replacement of sewer lines with little to no excavation.

This guide outlines common sewer line problems and explains how trenchless repair methods can safeguard your property. Whether you manage a home, commercial facility, or municipal infrastructure, understanding these innovative techniques will help you reduce downtime and protect your investment.

Common Sewer Line Problems and Their Key Indicators

Sewer line challenges have grown in complexity due to aging infrastructure, environmental shifts, and increased demand on plumbing systems. Identifying these issues early is key to preventing catastrophic failures. Here are the most common problems and the specific warning signs they produce:

1. Frequent Sewer Backups

A sewer backup, where wastewater flows back into your home, is a clear sign of a significant problem. These backups can be caused by severe blockages from grease, debris, or foreign objects. However, frequent sewer backups may point to a more serious underlying issue like a collapsed or severely misaligned pipe that requires immediate professional assessment.

Telltale Signs:

  • Wastewater coming up through drains, toilets, or shower bases.
  • Gurgling or bubbling noises from drains and toilets as air gets trapped by a blockage.
  • Multiple plumbing fixtures backing up at the same time.

2. Tree Root Intrusion

A persistent issue, particularly for properties with older pipes made of clay or cast iron, is tree root intrusion. Seeking moisture, tree roots can infiltrate the sewer line through tiny cracks or loose joints. Once inside, they expand, creating a net that catches debris and leads to blockages and significant structural damage.

Telltale Signs:

  • Recurring clogs in the same drains, even after they have been cleared.
  • Slow-draining sinks, tubs, and toilets throughout the property.
  • Toilets that don’t flush properly or make unusual sounds.

3. Aging and Deterioration

Pipes made from older materials will naturally degrade over decades of constant use and exposure to ground movement and corrosive wastewater. This deterioration can lead to cracks, leaks, sagging pipe sections (bellies), or even a partial collapse, all of which reduce flow capacity and undermine your property’s integrity.

Telltale Signs:

  • A persistent, foul sewer odor inside or outside your home.
  • Unexplained damp or soggy patches in your yard.
  • An increase in pest activity, as rodents can enter through cracks in the sewer line.

4. Recurring Clogs and Slow Drains

While a single clog can be a minor annoyance, multiple slow-draining fixtures or clogs that reappear frequently are a red flag for a major issue in the main sewer line. This widespread slowdown is typically caused by a significant buildup of grease, soap scum, and other debris or an unresolved root intrusion.

Telltale Signs:

  • Multiple fixtures draining slowly at once (e.g., the kitchen sink, shower, and toilet).
  • The need to use chemical drain cleaners frequently with little to no long-term effect.
  • Water backing up in one fixture when another is used (e.g., a toilet flushing causes water to rise in the shower).

5. Structural Damage from Shifting Soil

The ground surrounding your sewer lines is not static. Natural freeze-thaw cycles, heavy rainfall, or nearby construction can cause the soil to shift, putting immense pressure on the pipes. This movement can cause pipes to bend, crack, or separate at the joints.

Telltale Signs:

  • Unexplained wet spots or small sinkholes developing in your lawn or landscaping.
  • Lush, unusually green patches of grass directly above the sewer line.
  • New cracks appearing in your home’s foundation, walls, or floors due to soil erosion from a leak.

Why Prompt Sewer Line Repairs Matter

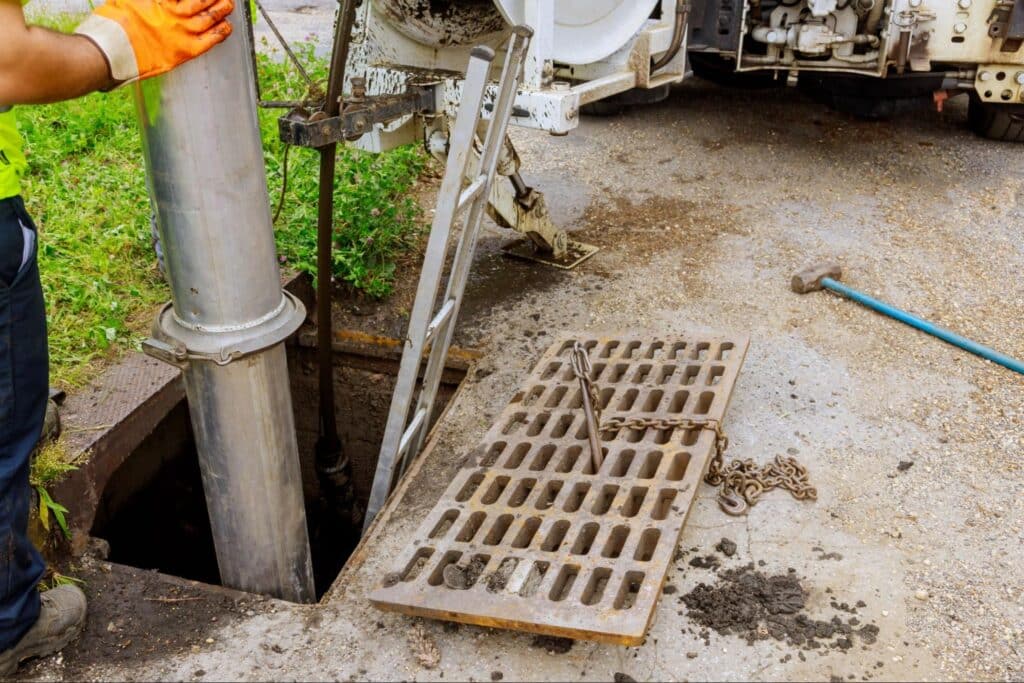

Plumber operating a pipe system at an urban drainage site.

When sewer line problems are caught early, property owners can avoid a host of larger complications. Prompt attention helps you minimize disruptions, cut costs, and maintain a safe, comfortable environment.

  1. Protecting Your Property Value: Sewer line damage—especially if left untended—can lead to significant structural complications. Over time, leaks may weaken building foundations or erode surrounding soil, jeopardizing the stability of your home or commercial facility. By addressing problems promptly, you preserve your property’s long-term value and avoid costly reconstruction.
  2. Reducing Health Risks: Broken or deteriorating sewer lines can introduce harmful bacteria and pathogens into your environment. When wastewater leaks, it poses serious health hazards, contaminating soil, creating unsanitary conditions, and increasing the chance of mold growth. By taking swift action, you promote a healthy living or working space.
  3. Preventing Escalated Repair Costs: Minor cracks or clogs can often be fixed quickly and affordably using trenchless methods. If ignored, however, these issues can broaden into full-blown pipe collapses or backups. As a result, the scope and cost of reconstruction will accelerate. Act quickly to contain the problem and prevent more comprehensive repairs in the future.
  4. Maintaining Environmental Responsibility: In our eco-conscious world, keeping sewer systems functional is more than a matter of convenience. Untreated leaks or backups risk contaminating local waterways and soil, harming the surrounding ecosystem. When you repair issues promptly, you show environmental stewardship and comply with standards that protect public health.

By recognizing warning signs and taking quick action, property owners in residential, commercial, industrial, and municipal settings can ensure that sewer lines remain safe and efficient. Proactive measures help avoid hefty price tags, keep service disruptions brief, and ensure that everyone using the property can trust their plumbing infrastructure.

The Trenchless Advantage: A Modern Alternative to Traditional Excavation

For decades, the standard approach to a broken sewer line was disruptive and costly. Traditional sewer repairs require extensive excavation—digging a large trench across your property to physically access and replace the damaged pipe. This method comes with significant drawbacks, including:

  • Major Property Disruption: Lawns, gardens, driveways, and walkways are often destroyed in the process, requiring extensive and expensive restoration.
  • Lengthy Repair Timelines: The process of digging, repairing the pipe, backfilling the trench, and restoring the landscape can take days, or even weeks, causing prolonged inconvenience.
  • High Hidden Costs: The initial repair quote for traditional methods often doesn’t include the cost of rebuilding landscapes, patios, or driveways, leading to unexpectedly high final bills.

Fortunately, trenchless technology provides a modern, far superior alternative. By utilizing small, strategically placed access points, these methods allow for the complete repair or replacement of sewer lines with virtually no excavation. This approach minimizes disruption, is completed much faster, and is significantly more cost-effective in the long run.

A Closer Look at Trenchless Methods

Trenchless repairs are not a one-size-fits-all solution; the technique is chosen based on the specific condition of the damaged pipe. The two primary methods are Cured-in-Place Pipe (CIPP) lining and pipe bursting.

1. Pipe Lining (Cured-in-Place Pipe, CIPP)

Ideal for pipes with cracks, leaks, or root intrusion that are still structurally intact, CIPP lining essentially creates a brand-new, seamless pipe within the old one. The process begins with a thorough cleaning of the host pipe, usually with high-pressure hydro jetting, to remove debris and roots. Next, a flexible felt liner is saturated with a high-strength epoxy resin and inserted into the damaged pipe. Once in place, the liner is inflated, pressing it against the walls of the existing pipe. It is then left to cure, often expelled with hot water or steam, hardening into a smooth, corrosion-resistant, and incredibly durable new pipe. This jointless lining eliminates weak points, preventing future root intrusion and restoring flow capacity.

2. Pipe Bursting

When a sewer line is severely deteriorated, has collapsed, or is undersized for the property’s needs, pipe bursting is the preferred solution. This technique breaks apart the old, damaged pipe while simultaneously pulling a new, high-density polyethylene (HDPE) pipe into its place. A specialized bursting head is guided through the old pipe, fracturing it outward into the surrounding soil. Directly behind this head, the new, stronger pipe is pulled along the same path. A major advantage of pipe bursting is that the replacement pipe can be the same size as the old one or even larger, allowing for an increase in flow capacity to meet modern demands.

Benefits Across All Property Types

These advanced, minimally invasive methods deliver powerful advantages for every kind of property owner:

  • Homeowners: Preserve pristine lawns, mature trees, and expensive driveways while getting a fast, permanent solution to sewer problems.
  • Commercial Properties: Minimize operational downtime and lost revenue. Repairs can often be completed in a single day, avoiding disruption to customers and employees.
  • Municipal Systems: Repair public sewer mains under busy streets and infrastructure without the need for large-scale, traffic-snarling excavation.
  • Industrial Facilities: Address failing pipes with robust, chemical-resistant materials that can withstand high-usage demands, ensuring operational continuity.

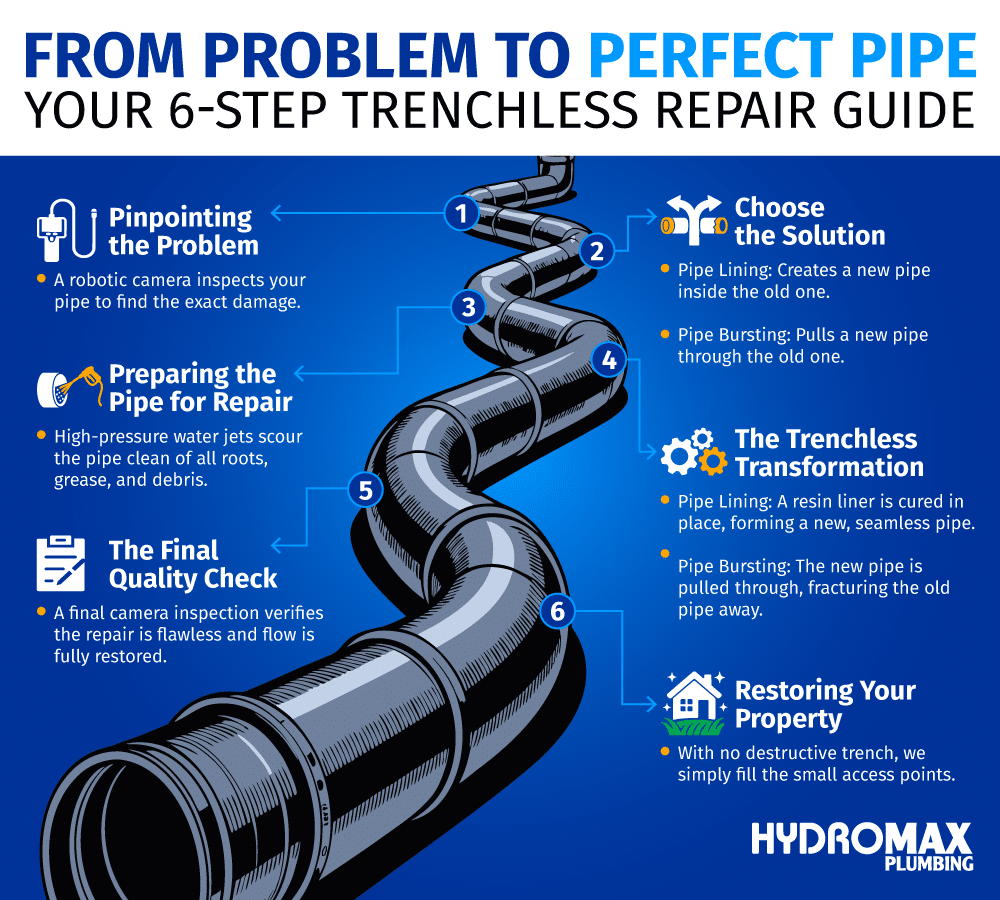

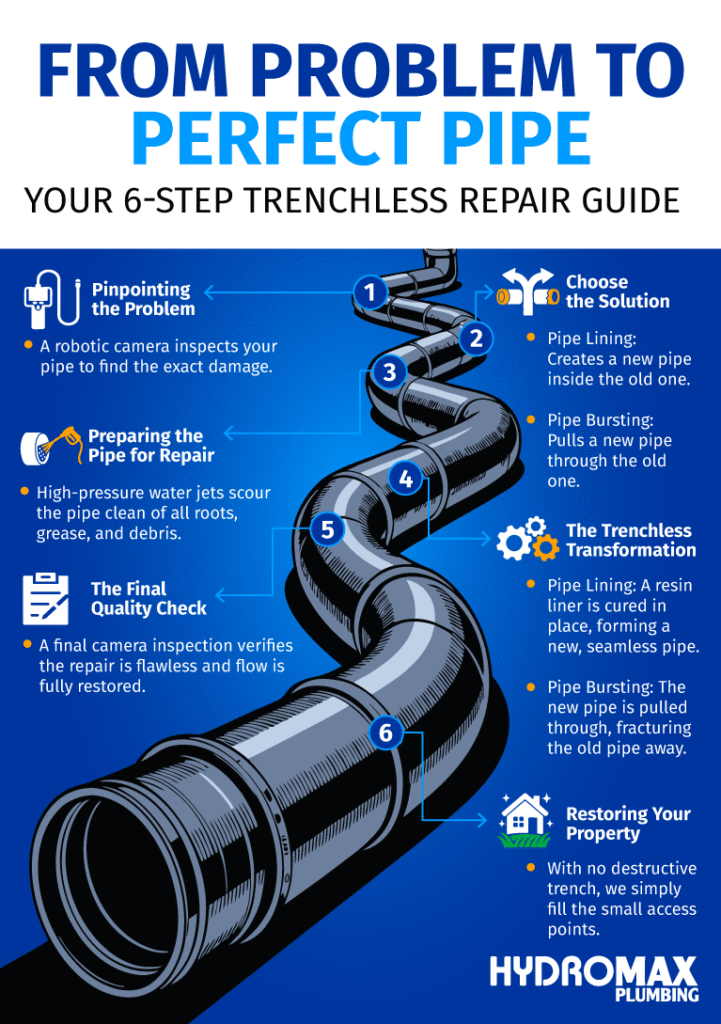

What to Expect: The Trenchless Repair Process Step-by-Step

Understanding the trenchless repair process can help you prepare for the work and ensure it’s carried out smoothly.

1. Initial Inspection and Diagnosis

  • Purpose: Determine the severity and location of the issue.
  • Method: A small camera is inserted into the sewer line to provide a real-time video feed of the pipe’s condition.
  • Outcome: Allows technicians to identify the problem accurately, whether it’s leaks, root intrusion, or structural damage.

2. Selection of Appropriate Method

  • Assessment: Based on the inspection, professionals will decide whether CIPP lining or pipe bursting is suitable.
  • Considerations: Factors like the nature of damage, pipe condition, and size are analyzed before making a decision.

3. Cleaning and Preparation

  • Thorough Cleaning: Before repair, the affected pipe is cleaned using techniques such as hydro jetting to remove obstructions like debris and roots.
  • Surface Preparation: Ensures the pipe is ready for the lining or bursting process, improving adherence and effectiveness.

4. Execution of Trenchless Repair

For Pipe Lining (CIPP):

  • Liner Insertion: A flexible liner, saturated with epoxy resin, is fed into the existing pipe through strategic access points.
  • Expansion and Curing: The liner is inflated, and heat or steam is applied to cure the resin, forming a new pipe within the old one.

For Pipe Bursting:

  • Bursting Head Deployment: A conical bursting head is inserted into the old pipe, breaking it apart.
  • Pipe Replacement: Simultaneously, a new HDPE pipe is pulled through the cleared path, replacing the old line.

5. Final Inspection and Testing

  • Verification: A follow-up camera inspection ensures the new pipe is correctly installed without issues.
  • Flow Testing: Flow tests are conducted to confirm the restored capacity and functionality of the sewer line.

6. Site Restoration

  • Minimal Disruption: Due to the non-invasive nature of trenchless methods, only minor restoration might be required.
  • Eco-friendly Cleanup: Ensures that the surrounding landscape and environment are left intact.

By familiarizing yourself with these steps, you’ll know what to anticipate during the trenchless repair process, ensuring clarity and confidence in the effectiveness of this advanced plumbing solution.

Preventative Sewer Line Maintenance Tips

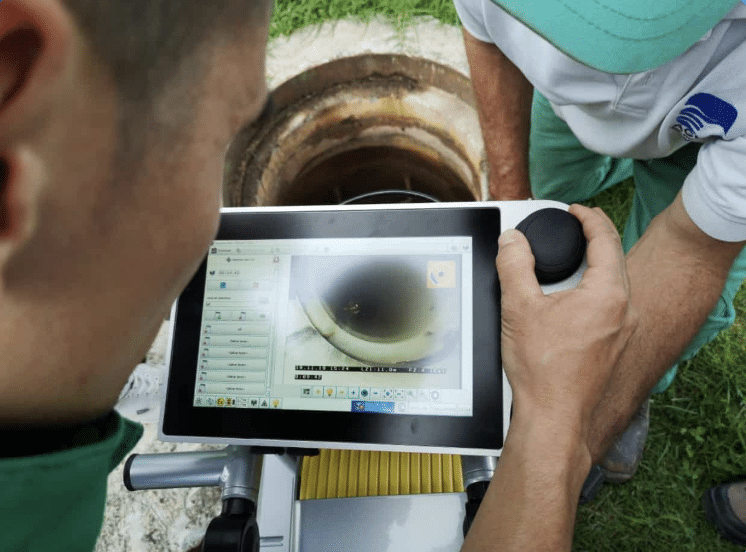

Technician using a tablet for efficient sewer line inspection and monitoring.

Preventative maintenance helps avoid costly repairs. Consider these steps:

  1. Proper Waste Disposal: Do not flush items that fail to degrade easily. Dispose of oils and fats in sealed containers.
  2. Mind Landscaping: Plant trees at safe distances from sewer lines to minimize root intrusion.
  3. Schedule regular drain cleaning: Immediately remove buildup and avert clogs.
  4. Arrange for Routine Inspections: Video camera examinations can catch small issues early.
  5. Consider maintenance contracts: Periodic inspections and prompt repairs extend your sewer system’s lifespan.

Cost Considerations and the Long-Term Value of Professional Repairs

While some trenchless solutions may appear to have higher up-front costs, the long-term value is substantial. Speedy completion times reduce labor bills and the need for future restoration. Modern materials resist corrosion and root infiltration, cutting down on extended maintenance expenses. Hiring experienced professionals guarantees reliable assessments and tailored repairs that safeguard your property.

Hydromax Plumbing: Your Partner in Advanced Sewer Line Repair

Based in Evansville, Indiana, Hydromax Plumbing is known for its expertise in trenchless techniques and comprehensive sewer line solutions. Using advanced diagnostics, they address problems swiftly and accurately. Their well-trained team restores functionality with minimal disruption, ensuring long-term reliability. Plus, Hydromax Plumbing operates 24/7 for emergency sewer line services, so you’re never left waiting when urgent issues arise.

Resolving Sewer Line Problems with Modern Solutions

Sewer line issues can quickly escalate if left unaddressed, leading to disruption and hefty expenses. Trenchless repair techniques—such as pipe lining and pipe bursting—provide modern, minimally invasive ways to restore pipe integrity with limited downtime. This approach ensures faster results, reduced costs, and a safeguarded property.

If you’re struggling with sewer line problems, don’t wait until minor inconveniences become major crises. Contact Hydromax Plumbing for a thorough inspection and find out how their state-of-the-art trenchless services can provide a lasting solution tailored to your needs.
